  Comparison of m-biomet’s titanium round bars And imported products

•

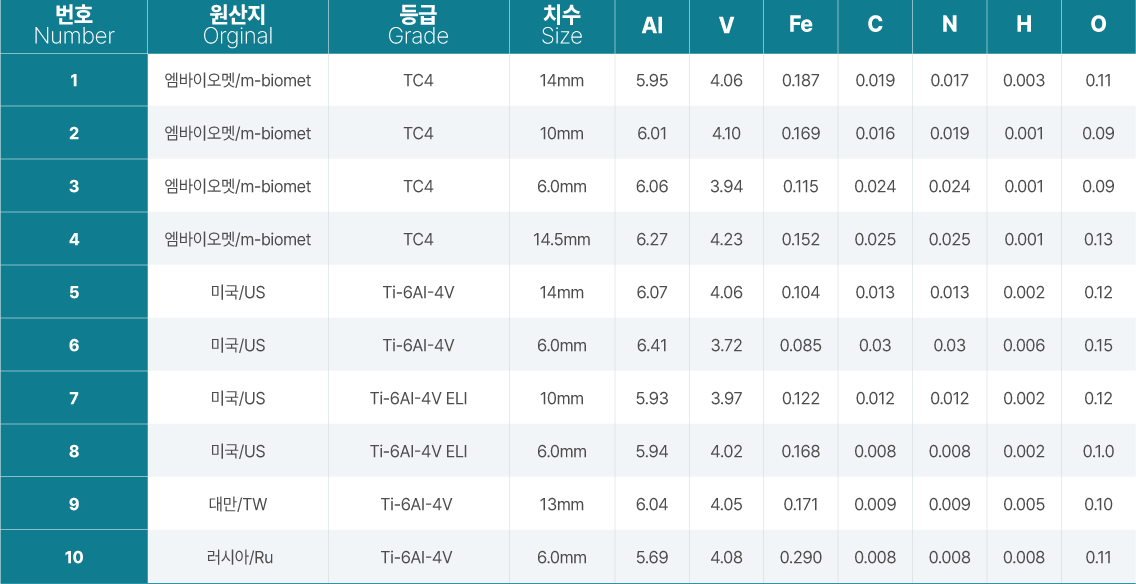

  Comparison of chemical
  components for titaniumround
  bars for implant surgery view more

  All chemical components meet the standard requirements (GB/T3620.1-2007), but m-biomet’s No.1, 2, and 3 have values closer to Gr.12 ELI than No.5 (US) & No.9 (Taiwan), which shows that the requirements for ELI and impurity control have reached a very high level.



  Comparison of mechanical
  propertiesof titanium round
  bars for implant surgery view more

  All mechanical properties meet the standard’s requirements (GB/T13810-2007). However, the tensile strength of m-biomet’s products shows that It’s relatively closer and more uniform.

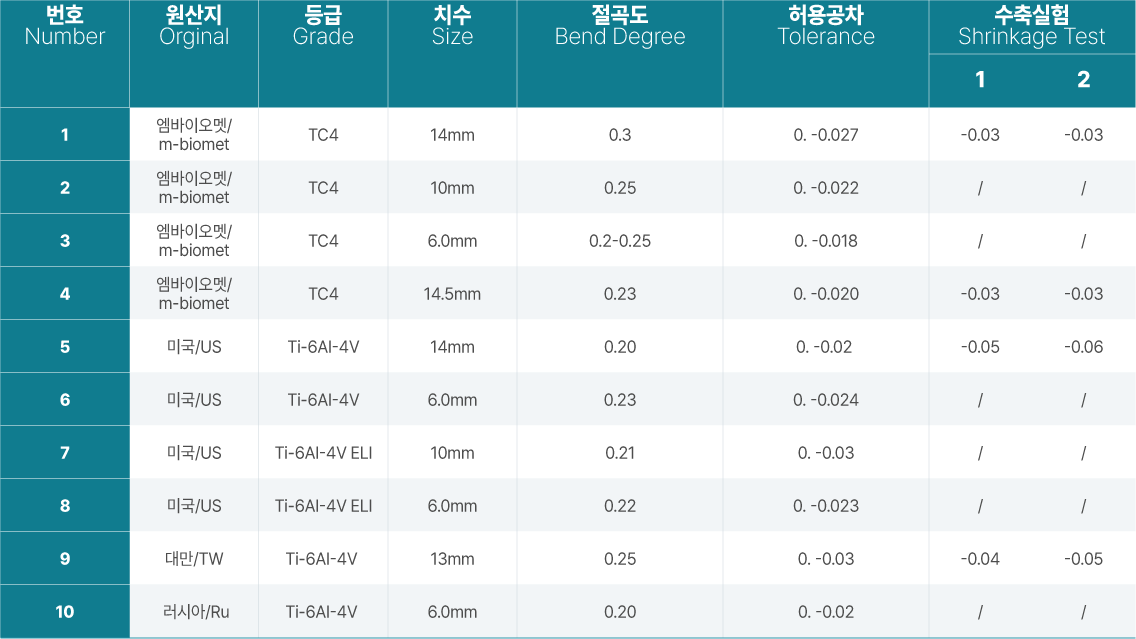

  Straightness, tolerance, surface,
  shrinkage test of titanium round
  bars for implant surgery view more

  The result of the test demonstrate that the tolerance, surface, and other areas showed the same level, but in shrinkage,
  m-biomet’s products showed better results than No.5 (US) & No.5 (Taiwan).

PROPERTIES TABLE Property table

Chemical Composition Chemical Compoments

Mechanical properties Mechanical Properties
