INTRODUCTION TO PRODUCTS

m-biomet is ready to make another leap forward
into the future in the field of medical titanium.

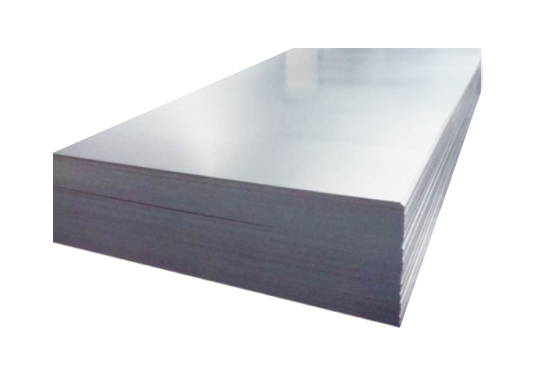

ADVANTAGES Advantages of titanium plates

  • Raw material

    Grade 0 or less particle titanium sponge

  • Detecting defects

    Defect detection through 100% ultrasonic inspection
    /eddy current inspection to remove metallic defects
    and non-metallic impurities.

  • Tolerance

    Tolerance for 0.5-1.0t: 0-0.08mm,
    Tolerance for 1.01-3.0t: 0-0.01mm
    Tolerance for 3.0-6.0t: 0-0.15mm,
    Tolerance for 6.0-8.0t: 0-0.2mm

  • Metal tissue

    TA3, Gr.3 particle size of thickness
    10.-6.0mm can reach Level 9 or higher,
    and TC20, Gr.5, Ti 6AI-4V ELI, Ti-6AI-7Nb
    can be stably controlled at A1 to A3 grades.

  • Mechanical properties

    100% diameter gauge type detection
    ensures h7 and h6 tolerance

SPECIFICATIONS More information

Specifications GB/T 23102, ASTM F1295, ISO 5832-11
Grades TC20, Ti-6Al-7Nb
Dimensions (1.0-6.0) X (300-400) X (1000-1500)
Tolerance 0.08-0.15 mm
Characteristics 1. High precision: thickness tolerance 0.04 -0.15mm, straightness within 1mm/m, flatness Ra<0.16um
2. High performance: tensile strength over 1000MPa
3. Metal tissue: A1-A4 grade
4. Non-destructive exam: within AA level
