  • Medical Titanium Plate

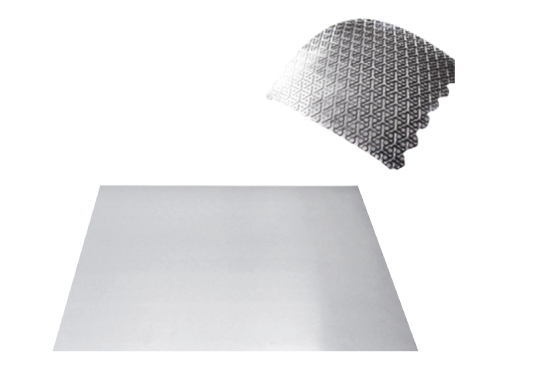

    Titanium plate
    for manufacturing the skull mesh

    GB/T 13810-2007, ASTM F67, ISO 5832-2

ADVANTAGES Advantages of titanium plates

  • Raw material

    Grade 0 or less particle titanium sponge
  • Detecting defects

    Defect detection through 100% ultrasonic inspection
    /eddy current inspection to remove metallic defects
    and non-metallic impurities.
  • Tolerance

    Tolerance for 0.5-1.0t: 0-0.08mm,
    Tolerance for 1.01-3.0t: 0-0.01mm
    Tolerance for 3.0-6.0t: 0-0.15mm,
    Tolerance for 6.0-8.0t: 0-0.2mm
  • Metal tissue

    TA3, Gr.3 particle size of thickness
    10.-6.0mm can reach Level 9 or higher,
    and TC20, Gr.5, Ti 6AI-4V ELI, Ti-6AI-7Nb
    can be stably controlled at A1 to A3 grades.
  • Mechanical properties

    100% diameter gauge type detection
    ensures h7 and h6 tolerance

SPECIFICATIONS More information

Specifications GB/T 13810-2007, ASTM F67, ISO 5832-2
Grades TA1, TA2, Gr1, Gr2
Dimensions 0.5 X (300-400) X (1000-1200); 0.6 X (300-400) X (1000-1200); 1.0 X (300-400) X (1000-1200)
Tolerance 0.05-0.1 mm
Surface Cold-rolled surface
Roughness Ra<0.08um
