INTRODUCTION TO PRODUCTS

m-biomet is ready to make another leap forward
into the future in the field of medical titanium.

  • Medical Titanium Round Bar

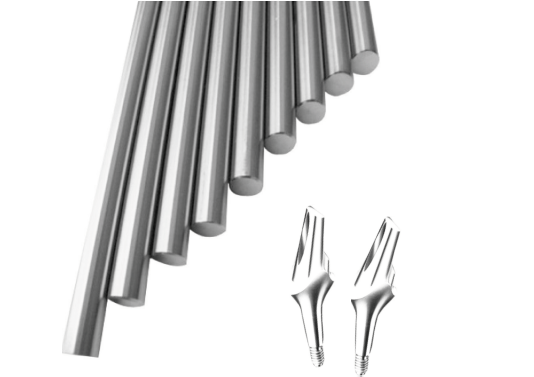

    Titanium round bars
    for manufacturing dental implants

    GGB/T 13810-2007, ASTM F67, ISO 5832-2, ASTM F136, ISO 5832-3, ASTM F1295

ADVANTAGES Advantages of titanium round bars

  • Raw material

    Grade 0 or less particle titanium sponge
  • Detecting defects

    Defect detection through 100% ultrasonic inspection
    /eddy current inspection to remove metallic defects
    and non-metallic impurities.
  • Dissolution

    Plasma vacuum melting 3 times, sampling,
    defect detection, top and bottom removal
  • Mechanical properties

    The tensile strength for a diameter of 20 mm or less for
    Gr.5 is 1000 (+/-25) MPa; and can be stably controlled.
  • Tolerance

    100% diameter gauge type detection
    ensures h7 and h6 tolerance
  • Metal tissue

    Gr.5 diameter of 20mm or less is A1 to A2 grades,
    ensuring stable and uniform metal structure
  • Straightness

    Can be realized within 0.3‰-0.5‰

SPECIFICATIONS More information

Specifications GB/T 13810-2007, ASTM F67, ISO 5832-2, ASTM F136, ISO 5832-3, ASTM F1295
Grades TA3, TA4, TC4, Gr3, Gr4, Gr5, Ti-6Al-4V, Ti-6Al-4V ELI, TC20, Ti-6Al-7Nb
Dimensions Ø5, Ø6, Ø8, Ø14, Ø20, Ø25, Ø30
Characteristics High elasticity, high strength and excellent metal structure
