• Medical Titanium Round Bar

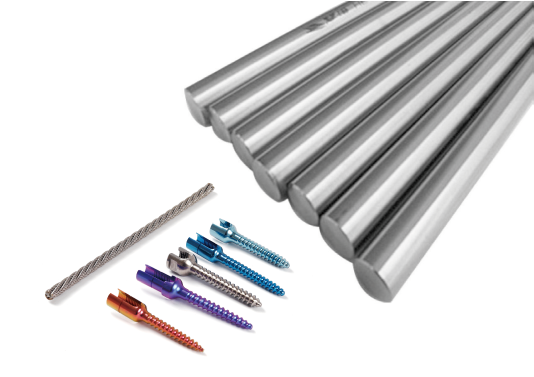

  Titanium round bar
  for manufacturing spinal screws

  GB/T 13810-2007, ASTM F136, ISO 5832-3

•
  Data Request Estimates

ADVANTAGES Advantages of titanium round bars

• Raw material

  Grade 0 or less particle titanium sponge

• Detecting defects

  Defect detection through 100% ultrasonic inspection
  /eddy current inspection to remove metallic defects
  and non-metallic impurities.

• Dissolution

  Plasma vacuum melting 3 times, sampling,
  defect detection, top and bottom removal

• Mechanical properties

  The tensile strength for a diameter of 20 mm or less for
  Gr.5 is 1000 (+/-25) MPa; and can be stably controlled.

• Tolerance

  100% diameter gauge type detection
  ensures h7 and h6 tolerance

• Metal tissue

  Gr.5 diameter of 20mm or less is A1 to A2 grades,
  ensuring stable and uniform metal structure

• Straightness

  Can be realized within 0.3‰-0.5‰

SPECIFICATIONS More information
